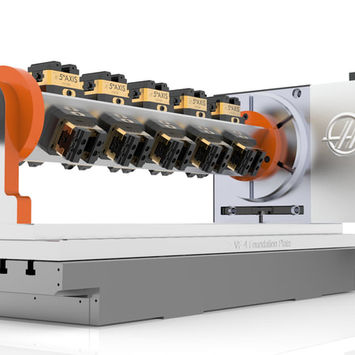

HAAS VF-4 Manual Workholding SolutionOur standard VF-4 workholding solution is ideal for HAAS HRT-310 and can be outfitted with a variety of workholding products from 5th axis and others. Featuring our Stallion Triangle Trunnion, this 4th axis trunnion is made from rigid, class #35 cast iron. Riser blocks can be provided at a variety of heights based on your configuration. This setup is ideal for any medium sized HAAS mill and offers the perfect blend of tool clearance and productivity.
Stop Handling, Start Machining. |
|
▪ Stallion Triangle Trunnion Table
▪ Mounting pattern for HAAS rotary table
▪ Outfitted with rocklock base and vise of customer's choosing
▪ Riser blocks made by Martin Trunnion Tables are provided
▪ Baseplate with mounting patterns for specified HAAS machine tool
"I would recommend Martin Manufacturing trunnions to anyone that’s looking for a long-lasting solution that will outperform anything else out there."
-Jordan Meier, Haas Applications Engineer
▪ Mounting pattern for HAAS rotary table
▪ Outfitted with rocklock base and vise of customer's choosing
▪ Riser blocks made by Martin Trunnion Tables are provided
▪ Baseplate with mounting patterns for specified HAAS machine tool
"I would recommend Martin Manufacturing trunnions to anyone that’s looking for a long-lasting solution that will outperform anything else out there."
-Jordan Meier, Haas Applications Engineer
